Product Code: Nagaoka MP100 Cartridge
Availability: Enquire Below

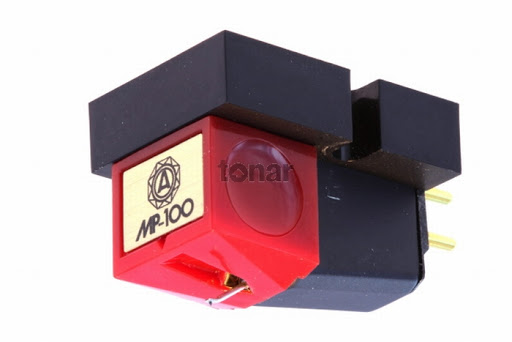

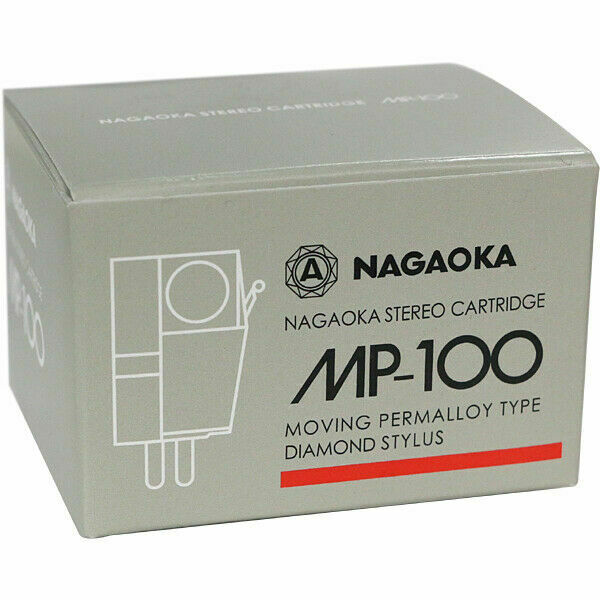

Nagaoka MP100 Cartridge

The Nagaoka MP-100 phono cartridge offers musical clarity and expression beyond its price and competitors - a splendid upward start toward long term musical enjoyment.

Complete instructions and mounting hardware are included.

Nagaoka MP-100 MP100 Phono Cartridge Features:

- SuperFine polished conical diamond bonded stylus
- Powerful samarium cobalt magnet
- Lightweight aluminum alloy for high fidelity
- Carbon Fibre reinforced plastic shoe
- Anti-ferro magnetic permalloy shield casing

Model: MP-100 (with stylus)
Type: Magnetodynamic Permalloy
Output Voltage: 5mV (5cm/sec)
Frequency Characteristic: 20 - 20,000Hz
Channel Separation: 22dB (1Khz)
Channel Balance: 2.0db or less
Load Resistance: 47 kOhm
Cantilever: Aluminum Alloy
Stylus Tip: 0.6mil Conical Bonded Diamond
Stylus Pressure: 1.8 - 2.3g (2.0g)
Cartridge Weight: 6.5g
Original Replacement Stylus: JNP-100
Original Replacement 78rpm Stylus:

Nagaoka only make MM cartridges, and is fully focused on making the best. This new range achieves not only the trademark smooth sound of MM cartriges, but also the transparency and accuracy in tonality traditionally associated with MC cartridges. MM cartridges have come a long way! All Nagaoka cartridges features a replaceable stylus to protect your investment.
